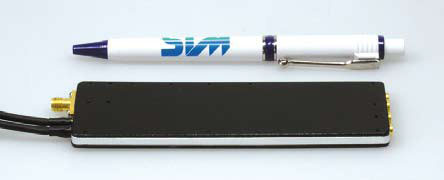

TC-MILAM-L DIGITAL MINIATURE VIDEO LINK
Item code - [31010]

PRODUCT DESCRIPTION

  • SMALLEST VIDEO LINK IN THE WORLD WITH DIVERSITY RECEIVER
  • BUILD-IN DIGITAL RECORDING
  • COMPACT SIZE AND LOW POWER CONSUMPTION
  • DIGITAL COFDM TRANSMISSION ELLIMILATE MULTI-PATH INTERFER-ENCE IN ANALOG TRANSMISSION
  • ULTRA LOW POWER CONSUMPTION, 8 HOURS OPERATION FROM INTEGRATED 3.6V/4000MH LI-ON BATTERY
  • UP TO 1000M OPERATION IN TYPICAL URBAN ENVIRON-MENT

FEATURES:

  • TRANSMITER FREQUENCY: 1015, 1150 OR 1210 MHz
  • SIGNAL MODULATION: COFDM
  • VIDEO STANDARD: PAL/NTSC, 1Vpp @ 75 Ohm
  • FRAME RATE: 25 fps (PAL)/ 30 fps (NTSC)
  • SUPPLY VOTAGE: 3.3-4.5VDC, 2.1W
  • AUX. POWER SUPPLY: 120mA @ 10.5VDC FOR EXTERNAL CAMERA
  • RF OUTPUT: 250 Mw
  • TRANSMITTER WEIGHT & SIZE: 40g, 130 X 40 X 8mm
  • RECEIVER MODE: SINGLE CHANNEL OR 2 CHANNELS DIVERSITY
  • RECEIVER VOLTAGE: 3.3-4.2VDC, 3-4.5W
  • RECORDING TIME: 74 MINUTES PER 4GB SD CARD
